Application

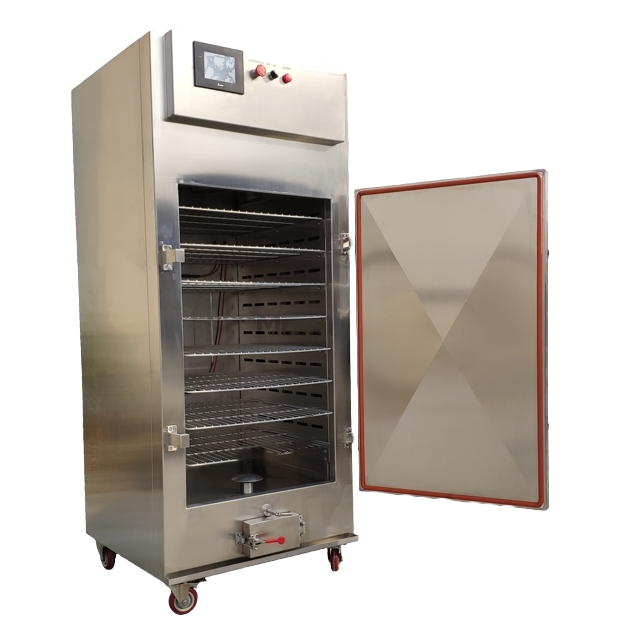

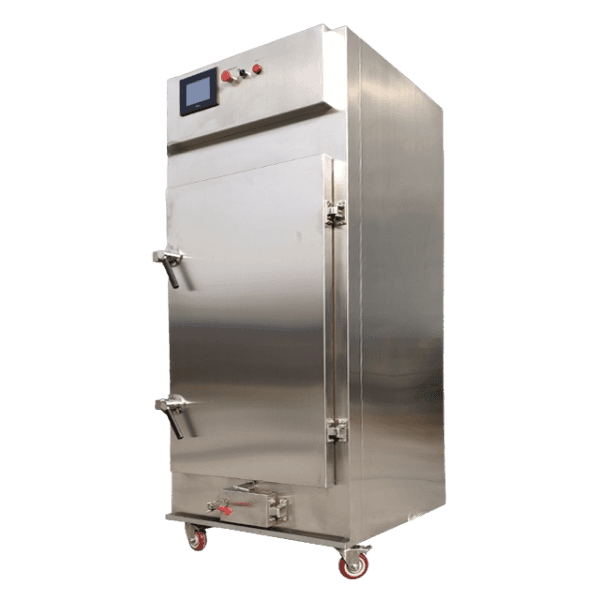

YX50 compact smokehouse has the functions of steaming, drying, baking, smoking. It is suitable for thermal processing of meat and fish products in small factories, restaurants, laboratories, etc.
Features
Easy Handling: Easy handling with large drum opening.
Multiple Vacuum Modes: Support normal, continuous, and breath vacuum processing.
Product Fitting: Hanged or laid.
Control: It adopts PLC and touch panel.
Smoking: Automatic air cylinder. Integrated smoke generator. The temperature and humidity sensors are equipped. After setting the temperature and time, the oven will be work in single step or automatic continuous operation.
Quality Build: Full body 304 stainless steel.
Accessorie: 8 meshes, 10 sticks, 1 set of spare
Specifications
| Model | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|
| YX50 | External 800 Internal 680 | External 860 Internal 630 | External 1910 Internal 1150 | 350 |
| Model | Volume (L) | Max Capacity (kg) | Max Temperature (Celsius) | Vacuum (Mpa) | Power (kW) |
|---|---|---|---|---|---|
| YX50 | 150 | 50 | 120 | -0.085 | 9.5 |
