Application
Vacuum tumblers tenderize the product and make it absorb salt or marinades better, resulting in improved appearance and consistent quality. They are easy to use, with programs to automate operating intervals to boost efficiency. They are widely used in meat, fish, and poultry processing.
Features

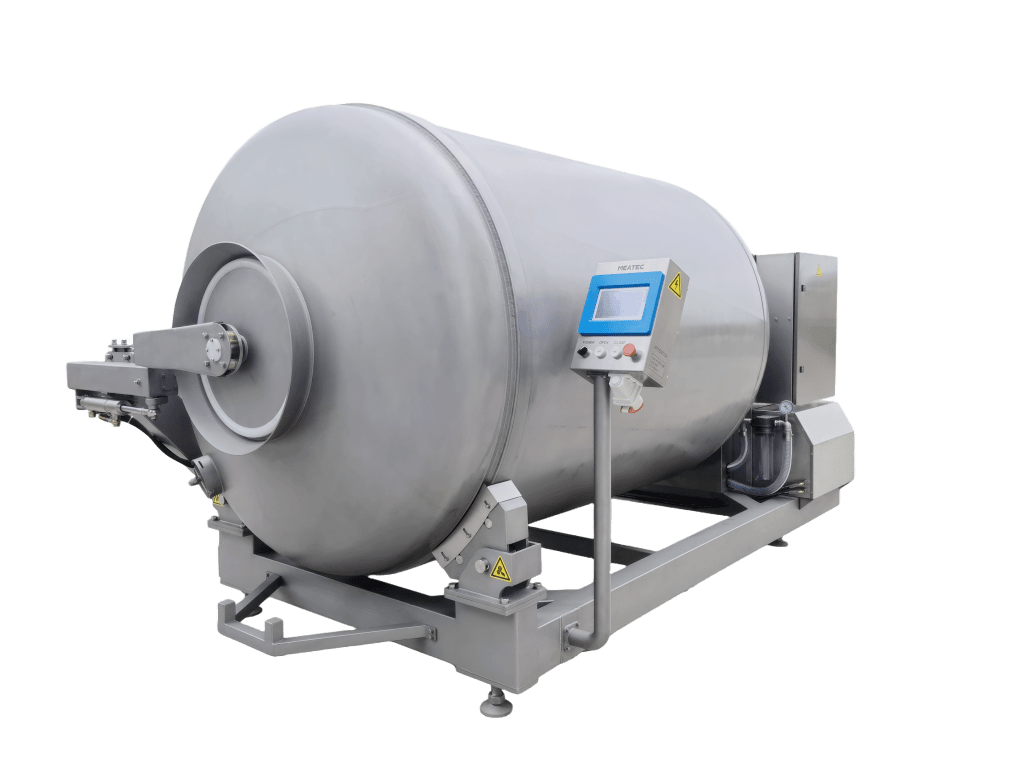

Control Options: Can choose between simple timer control or touch screen with advanced controls like professional tumbling and vacuum condition.
Stepless Adjustable Speed: Stepless rotation speed that fits a wide range of product use cases.
Vacuum Pump: Water circulating vacuum pump with filtration system and circulating water box.
Blade Choices: Fin blade is standard and triangle or other type blade is optional as request.
Quality Built: Full body 304 stainless steel. The drum is finely polished inside and the surface is sandblasted.

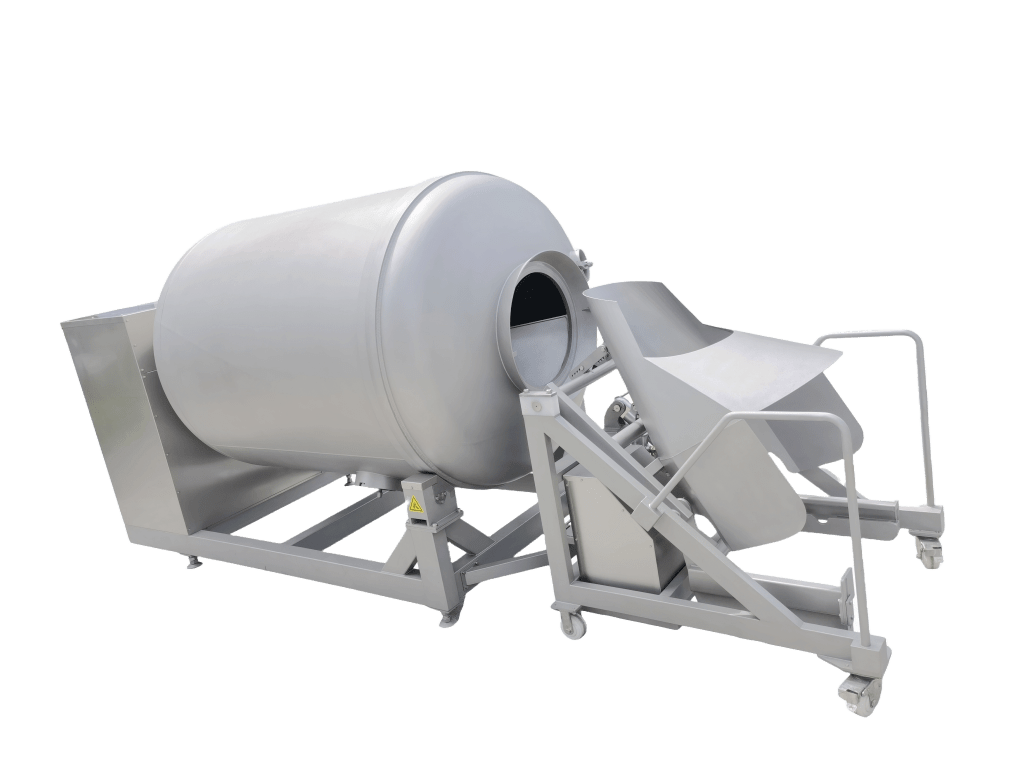

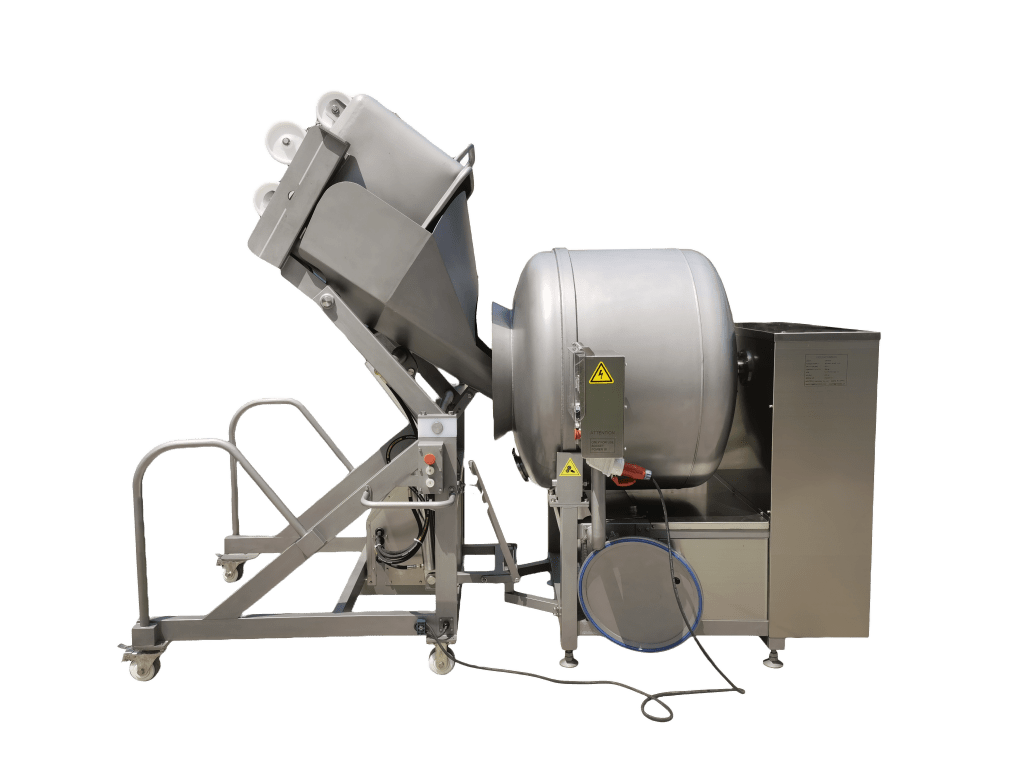

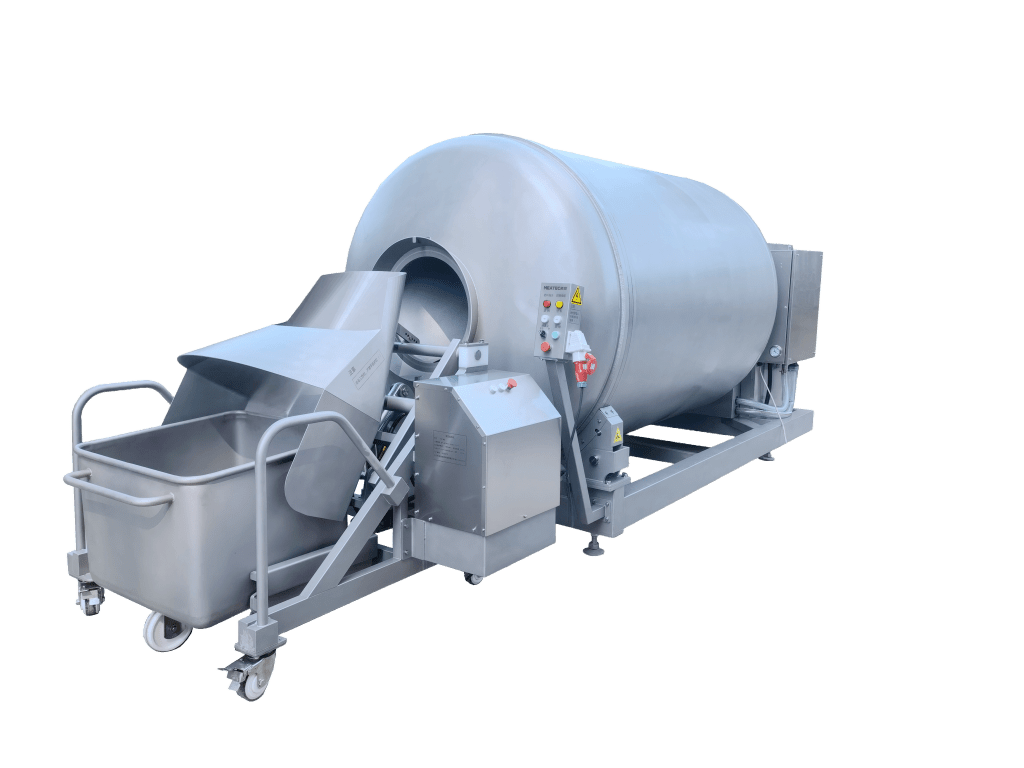

Compatibility: The buggy dumper TSY900 series can perfectly coordinate with the vacuum tumbler for quick loading or suction.
Optional Add-Ons: the weighing device; cooling jacket; lid hanging device; hydraulic automatic lid open/close.
Specifications

| Model | Volume (L) | Capacity (kg) | Drum Speed (RPM) | Vacuum (MPa) | Power (kW) |
|---|---|---|---|---|---|

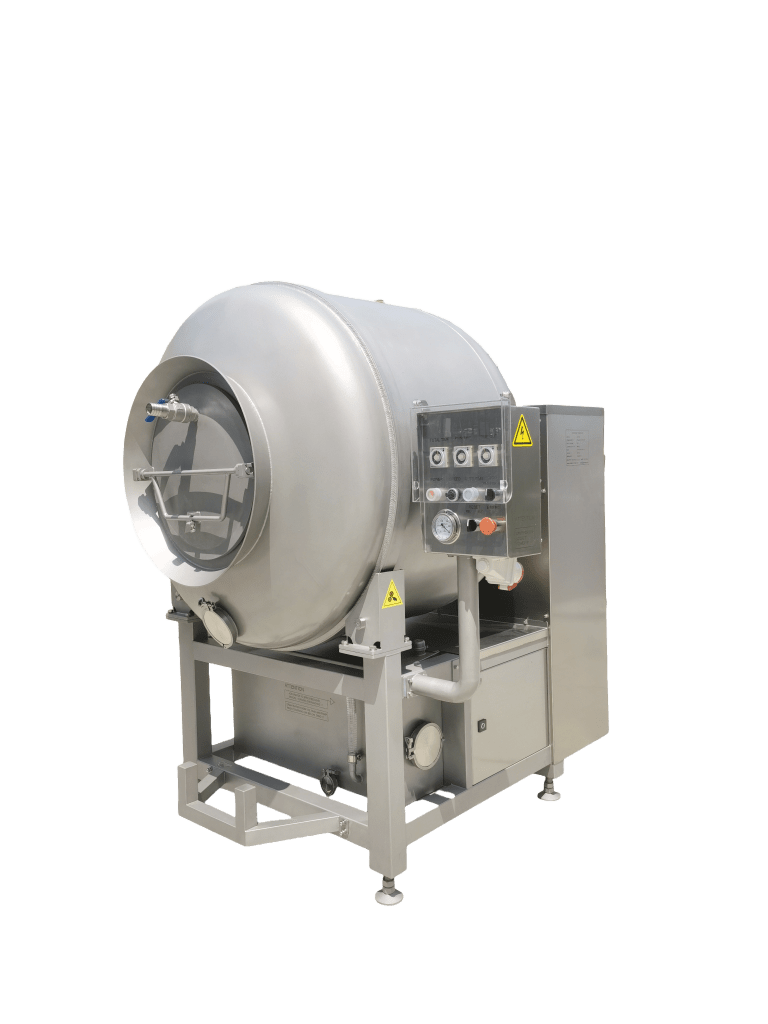

| GRH600 | 600 | 300 | 2-12 | -0.085 | 3.7 |
| GRH800 | 800 | 400 | 2-12 | -0.085 | 3.7 |

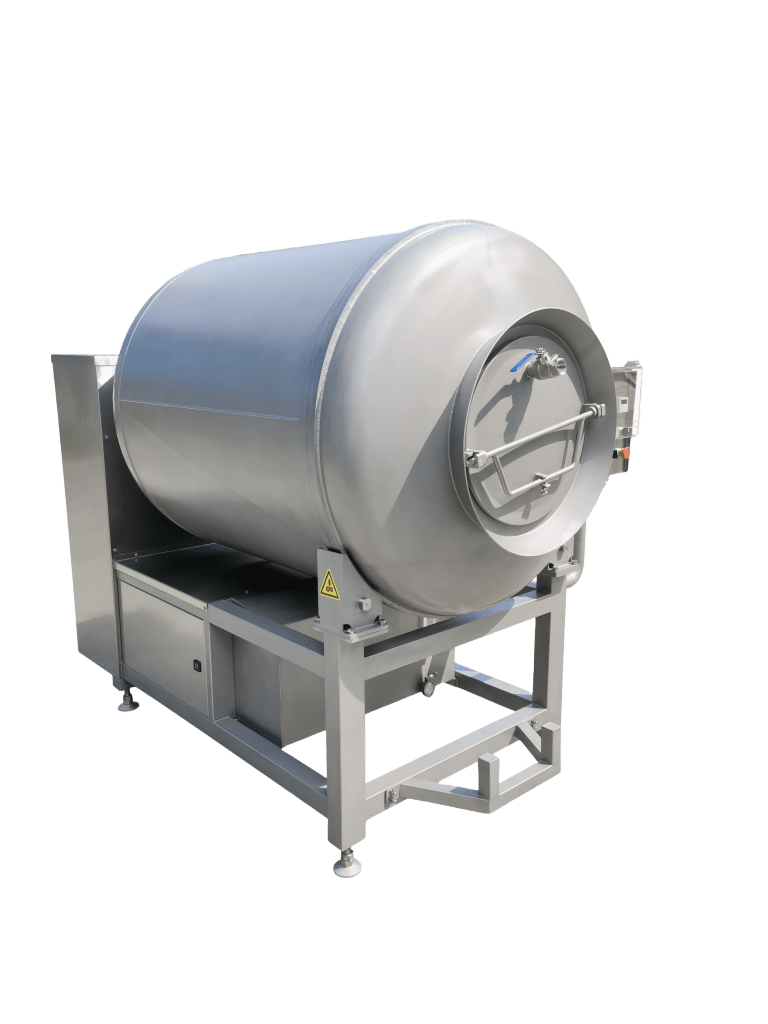

| GRH1000 | 1000 | 500 | 2-12 | -0.085 | 3.7 |

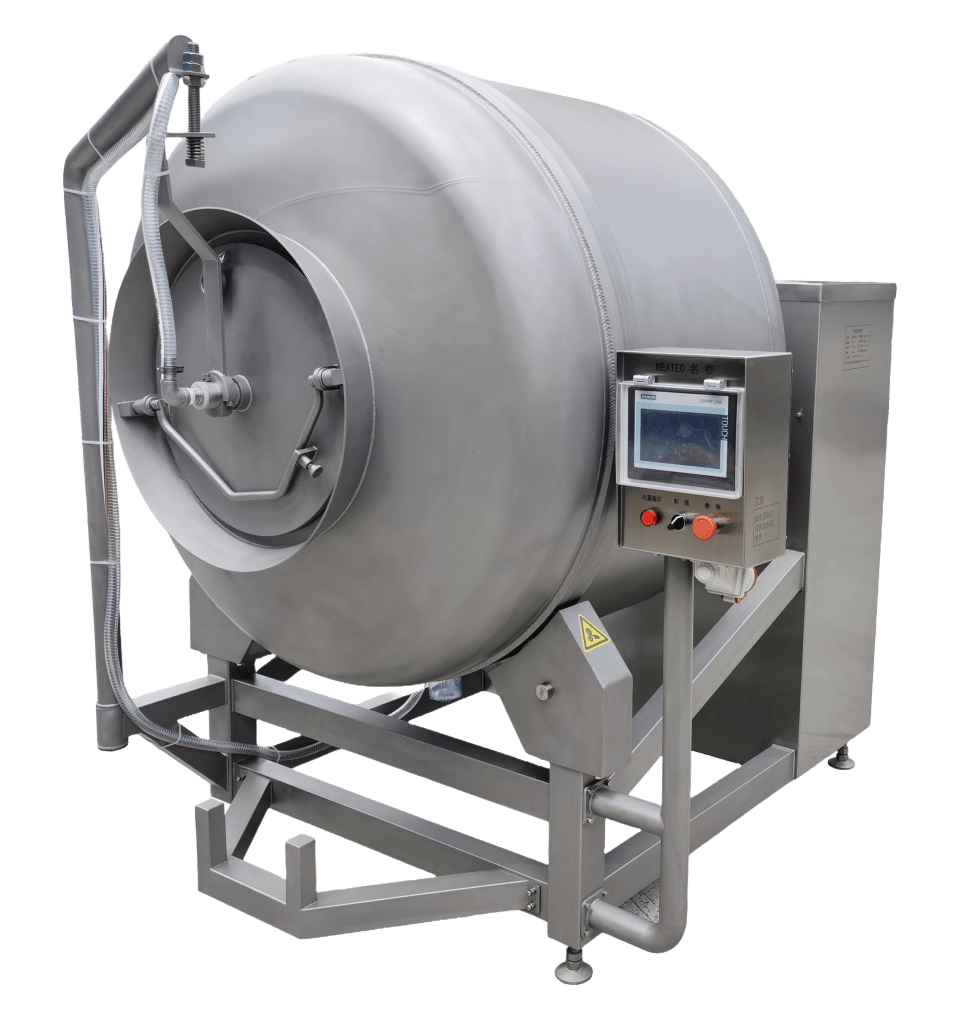

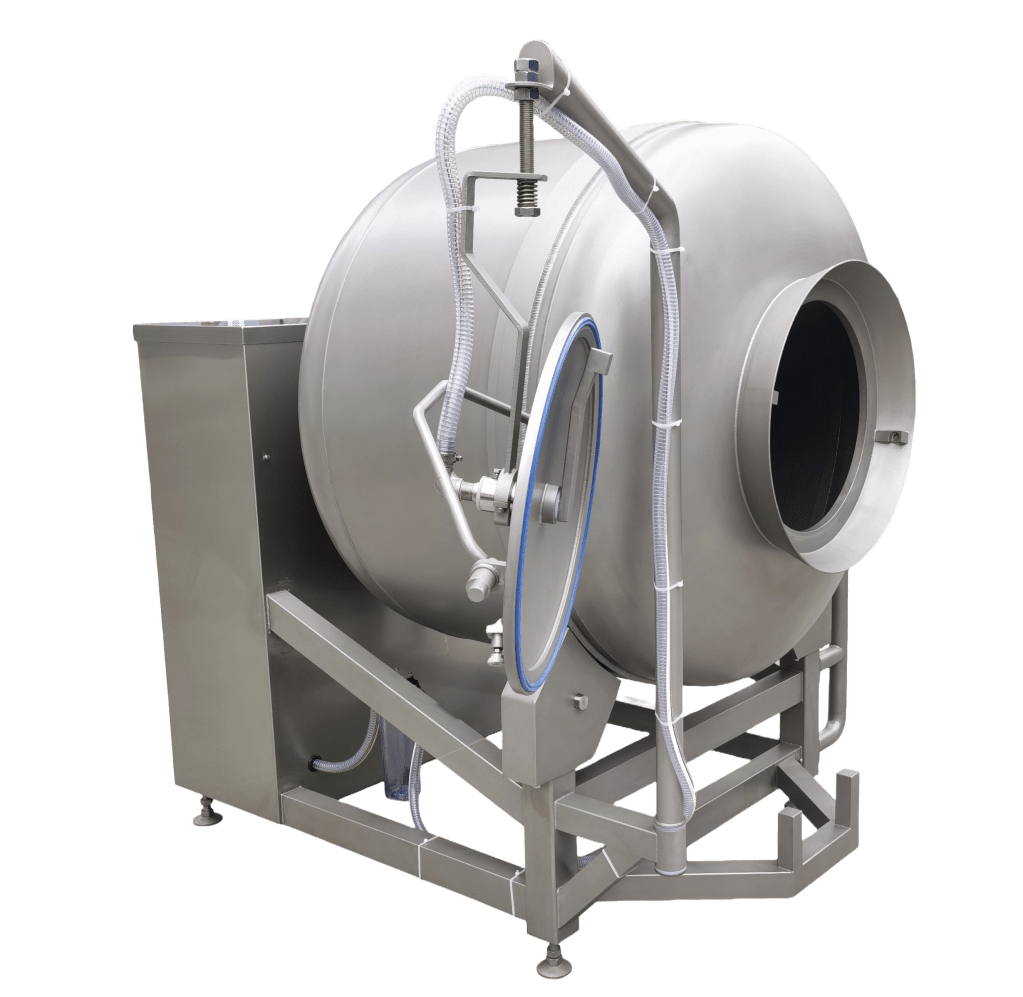

| GRHD1000 | 1000 | 500 | 2-12 | -0.085 | 3.7 |
| GRH1500 | 1500 | 750 | 2-12 | -0.085 | 5.2 |

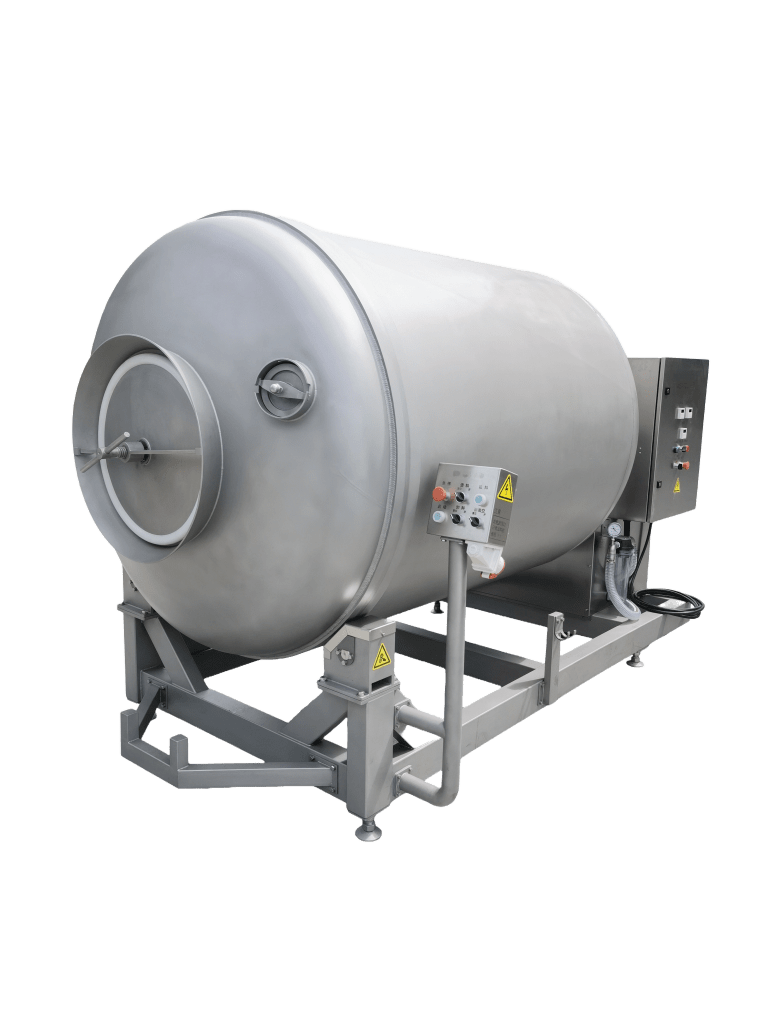

| GRH2000 | 2000 | 1000 | 2-12 | -0.085 | 5.2 |
| GRH2600 | 2600 | 1300 | 2-12 | -0.085 | 7 |
| GRH3000 | 3000 | 1500 | 2-12 | -0.085 | 7 |
| GRH4000 | 4000 | 2000 | 2-6 | -0.085 | 9.5 |
| GRH5000 | 5000 | 2500 | 2-6 | -0.085 | 9.5 |

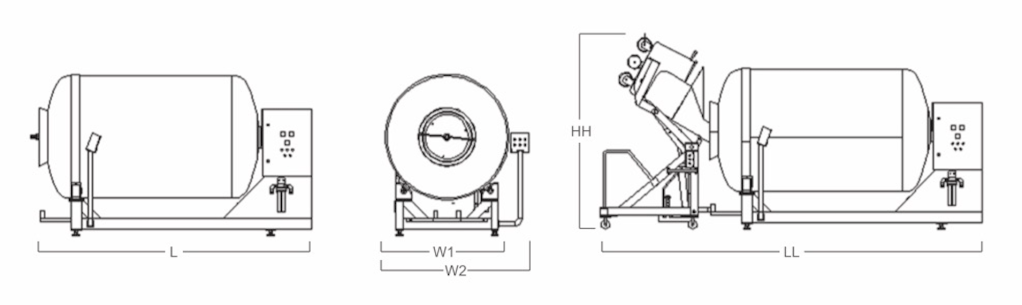

| Model | L (mm) | W1 (mm) | W2 (mm) | H (mm) | LL (mm) | HH (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| GRH600 | 1400 | 1040 | 1340 | 1620 | 2680 | 2240 | 400 |
| GRH800 | 1650 | 1040 | 1340 | 1620 | 2930 | 2240 | 450 |
| GRH1000 | 1900 | 1040 | 1340 | 1620 | 3180 | 2240 | 480 |
| GRHD1000 | 1750 | 1200 | 1480 | 1725 | 3000 | 2240 | 600 |
| GRH1500 | 2270 | 1250 | 1460 | 1720 | 3400 | 2240 | 900 |
| GRH2000 | 2770 | 1250 | 1460 | 1720 | 3900 | 2240 | 1000 |
| GRH2600 | 2880 | 1400 | 1625 | 1800 | 4010 | 2240 | 1300 |
| GRH3000 | 3180 | 1400 | 1625 | 1800 | 4310 | 2240 | 1500 |
| GRH4000 | 3180 | 1600 | 1825 | 1900 | 4310 | 2240 | 1600 |
| GRH5000 | 3450 | 1650 | 1880 | 1925 | 4680 | 2240 | 1800 |
